Whelen Pioneer Plus™ Mounting

FEATURES

Pioneer Plus™ Mounting

• Pedestal mount

• Locking pedestal mount

• Low profile Pedestal/swivel mounting

• Universal bail bracket

• Semi-recessed with Chrome trim ring

• Vehicle specific brow mount kit

• Pole/pedestal mount

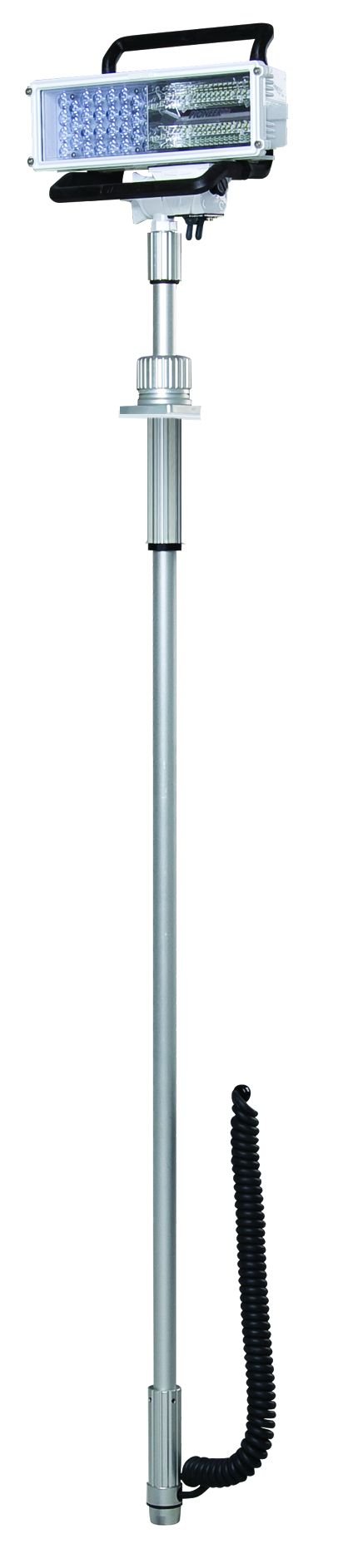

3000 & 3100 Series Pioneer™ Pole Mounting

• 57” extruded anodized aluminum AC and DC adjustable pole assemblies

• Available with top or bottom mount locking collar

• Outer body certified to NFPA 15.8 Access Handrails or Handhelds

• Three conductor internal input wire for AC models, four conductor internal input wire for DC models

• Side and Thru Body mount versions

• Requires purchase of Pioneer lighthead with pole/pedestal mount adapter

• Optional lower side mount cradle bracket

• Optional internal top mount or bottom lower cradle mount electromagnetic sensor. These indicate if the pole has been seated properly into the cradle for travel (customer supplied warning indicator light)

3050 Series Pioneer™ Pole Mounting

• Extruded aluminum AC pole assemblies

• Available in 30” (76cm), 40” (102cm), and 50” (127cm) lengths

• 40” (102cm) DC pole assembly available

• Side mount with Silver powder coated non-adjustable stand-off mounting brackets available in 2”, 3”, 5”, and 7”

• Top mount (pull-up)

• Three conductor internal input wire

• Poles and outer bodies are anodized to eliminate corrosion and yellowing

• Requires purchase of Pioneer lighthead with pole/pedestal mount adapter

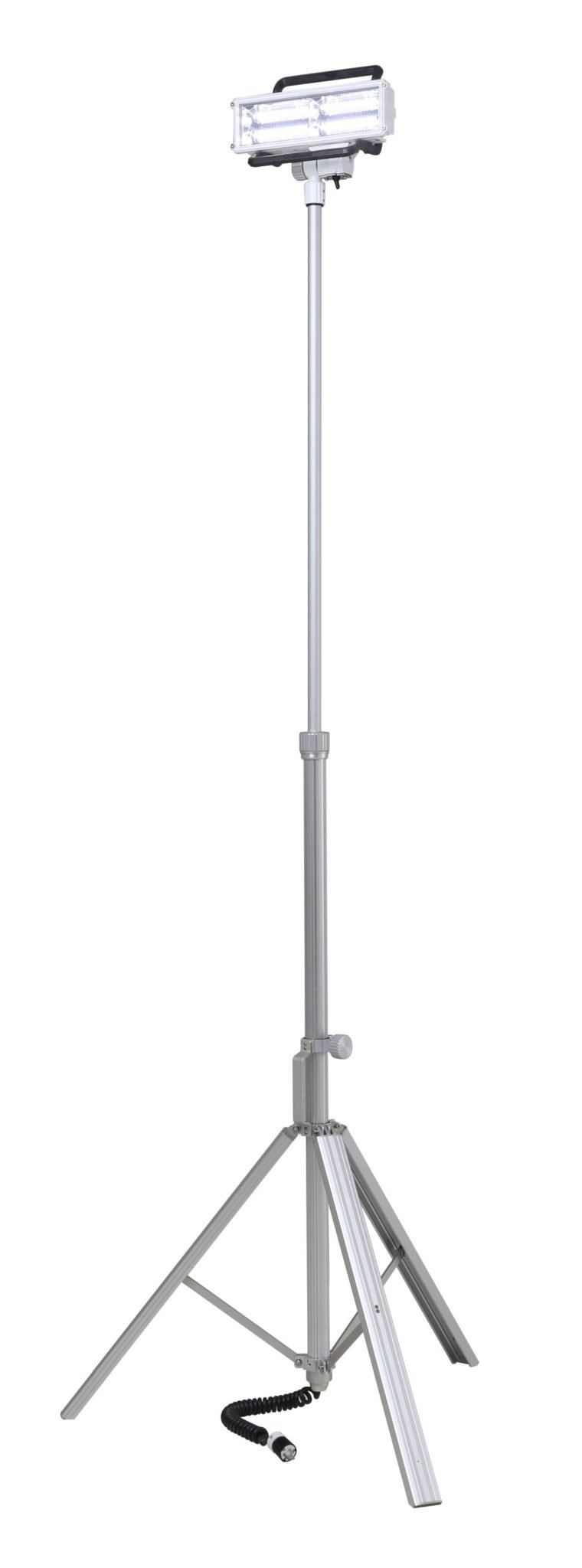

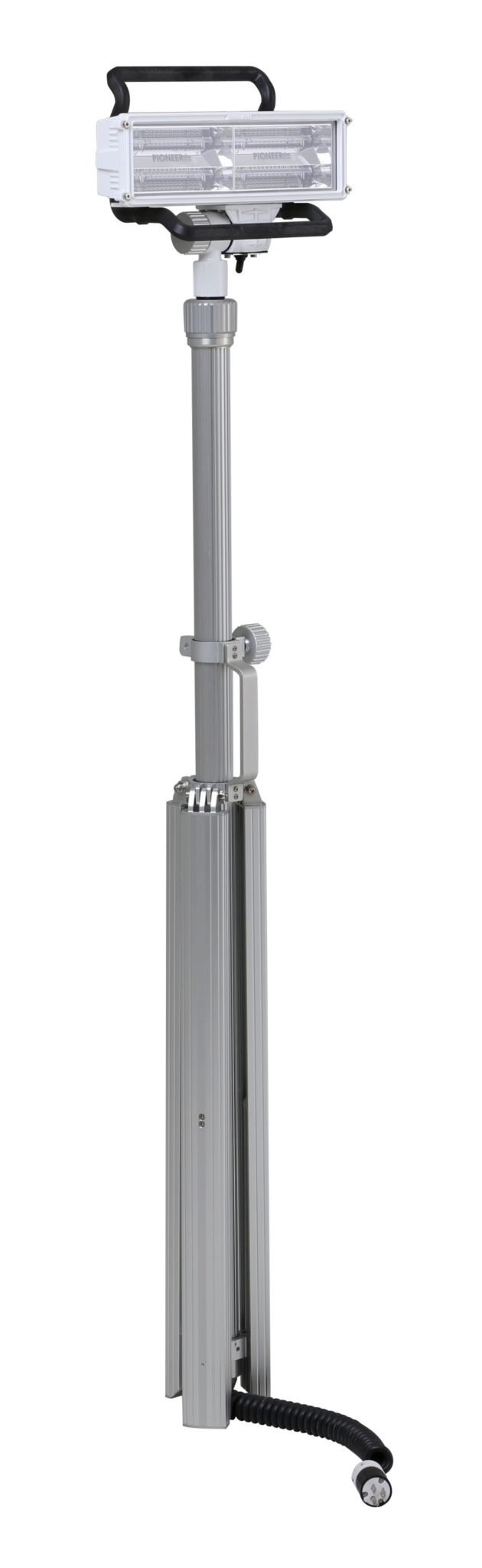

3200 Series Pioneer™ Folding Tripod

• Extruded aluminum AC tripod assemblies

• Available in 30” (76cm), 40” (102cm), and 50” (127cm) lengths

• Tripod models available are:

  • Wireless for use with ground tripod

  • With inner coil cord without plug

  • With inner coil cord with plug

  • With loose external coil cord for top wire exit with plug

  • With loose coil cord for external top wire exit without plug

• All moving aluminum parts are isolated with nylon bushings for superior industry leading adjustment and fold outs. All inner poles, outer bodies, and folding legs are anodized to eliminate corrosion and yellowing

• Requires Pioneer with pole/pedestal mount adapter (purchased separately)

• Optional tripod mounting cradle bracket with upper quick disconnect mount bracket (model 87283001)

• Optional ground tripod mounting bracket for all folding tripods (model 87283002)

3300 Series Pioneer™ Ground Tripod

• White powder coated cast aluminum AC portable ground tripod

• Includes stationary quick disconnect mount

• Includes 12” cable

• Requires purchase of Pioneer lighthead with pole/pedestal mount adapter

• 3300 ground tripod can be secured to the body or stowed in a compartment via the ergonomic quick disconnect spring in mounting bracket

• 3300 ground tripod can be installed on a 3200 series folding tripod, 3300 or 3100 series pole, or pedestal base using either the standard or heavy duty adapter kit

• Optional plugs available
